LayerNode Class Reference
Represents a single layer in a workload. More...

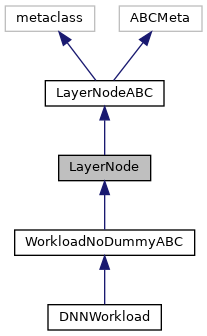

Inheritance diagram for LayerNode:
Collaboration diagram for LayerNode:
Public Member Functions | |
| def | __init__ (self, int layer_id, str node_name, LayerNodeAttributes node_attr, MappingAttributes mapping_attr) |
| To construct each layer node, algorithm equation/dimension/indirect relation are parsed. More... | |
| LayerOperand | get_act_layer_op (self) |
Return the I LayerOperand: either the non-constant operand or one of the input operands if none are constant. More... | |
| LayerOperand | get_weight_layer_op (self) |
Return the W LayerOperand: either the constant operand or one of the input operands if none are constant. More... | |
| tuple[PrLoop, LoopList, PrScalingFactors] | build_pr_funcs (self) |
| def | __str__ (self) |
| def | __jsonrepr__ (self) |
| JSON representation used for saving this object to a json file. More... | |
| float | calc_tensor_size (self, LayerOperand layer_op, LayerDimSizes layer_dim_sizes) |
| Calculates the tensor size (nb of elements) for the given operand layer_op with the given loop dimension sizes layer_dim_sizes. More... | |
| def | calc_tensor_dim (self, LayerDim dim, LayerDimSizes layer_dim_sizes) |
| dict[LayerDim, UnrollFactor] | calc_tensor_dims (self, LayerOperand layer_op, LayerDimSizes layer_dim_sizes) |
| int | calc_pr_dimension_size_total (self, LayerDim dim) |
| Compute the total pr dimension size of this node, taking padding into account. More... | |
| def | extract_layer_info (self) |
| This function extract basic information for each layer node. More... | |
| list[LayerDim] | get_operand_irrelevant_layer_dims (self, LayerOperand layer_op) |
| Return the irrelevant dimensions of layer operand 'layer_op'. More... | |
| LayerNodeAttributes | extract_node_attr (self) |
| Pack this layer node's attributes in a LayerNodeAttributes instance. More... | |
| MappingAttributes | extract_mapping_attr (self) |
 Public Member Functions inherited from LayerNodeABC | |
| def | __init__ (self, int node_id, str node_name) |
| str | __repr__ (self) |
Static Public Member Functions | |
| def | calc_pr_dimension_size (int sa, int a, int sb, int b) |
| Calculates the number of unique indices c generated by iterating through the indices a in range(0,A,1) and b in range(0,B,1) according to the equation c = sa * a + sb * b. More... | |
Detailed Description
Represents a single layer in a workload.
Constructor & Destructor Documentation
◆ __init__()
| def __init__ | ( | self, | |
| int | layer_id, | ||
| str | node_name, | ||
| LayerNodeAttributes | node_attr, | ||
| MappingAttributes | mapping_attr | ||
| ) |
To construct each layer node, algorithm equation/dimension/indirect relation are parsed.
This parser collects information of operand, loop dimension, and loop relevance. Equal-to-1 loop dimensions are eliminated.
- Parameters
-
layer_id The identifier (key) of the layer, as defined in the workload node_name an optional name for the Node. E.g. the node's name from the onnx model.
Member Function Documentation
◆ __jsonrepr__()
| def __jsonrepr__ | ( | self | ) |
JSON representation used for saving this object to a json file.
Reimplemented from LayerNodeABC.

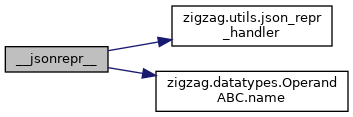

Here is the call graph for this function:
◆ __str__()
| def __str__ | ( | self | ) |
◆ build_pr_funcs()
| tuple[PrLoop, LoopList, PrScalingFactors] build_pr_funcs | ( | self | ) |
TODO requires documentation
◆ calc_pr_dimension_size()
|
static |
Calculates the number of unique indices c generated by iterating through the indices a in range(0,A,1) and b in range(0,B,1) according to the equation c = sa * a + sb * b.
sa and sb thus represent the scaling of a, resp. b.

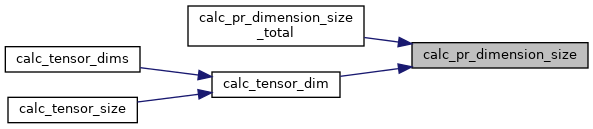

Here is the caller graph for this function:
◆ calc_pr_dimension_size_total()
| int calc_pr_dimension_size_total | ( | self, | |
| LayerDim | dim | ||
| ) |
Compute the total pr dimension size of this node, taking padding into account.
- Parameters
-
dim (str): The partially relevant dimension, e.g. 'IX'.
- Returns
- int: The total partially relevant dimension size
Here is the call graph for this function:
◆ calc_tensor_dim()
| def calc_tensor_dim | ( | self, | |
| LayerDim | dim, | ||
| LayerDimSizes | layer_dim_sizes | ||
| ) |
Here is the call graph for this function:
Here is the caller graph for this function:
◆ calc_tensor_dims()
| dict[LayerDim, UnrollFactor] calc_tensor_dims | ( | self, | |
| LayerOperand | layer_op, | ||
| LayerDimSizes | layer_dim_sizes | ||
| ) |
TODO requires documentation
Here is the call graph for this function:
◆ calc_tensor_size()
| float calc_tensor_size | ( | self, | |
| LayerOperand | layer_op, | ||
| LayerDimSizes | layer_dim_sizes | ||
| ) |
Calculates the tensor size (nb of elements) for the given operand layer_op with the given loop dimension sizes layer_dim_sizes.
Here is the call graph for this function:
◆ extract_layer_info()
| def extract_layer_info | ( | self | ) |
This function extract basic information for each layer node.
◆ extract_mapping_attr()
| MappingAttributes extract_mapping_attr | ( | self | ) |
◆ extract_node_attr()
| LayerNodeAttributes extract_node_attr | ( | self | ) |
Pack this layer node's attributes in a LayerNodeAttributes instance.
Useful for instantiating new layer nodes (used in Stream)
◆ get_act_layer_op()
| LayerOperand get_act_layer_op | ( | self | ) |
Return the I LayerOperand: either the non-constant operand or one of the input operands if none are constant.
Here is the caller graph for this function:
◆ get_operand_irrelevant_layer_dims()
| list[LayerDim] get_operand_irrelevant_layer_dims | ( | self, | |
| LayerOperand | layer_op | ||
| ) |
Return the irrelevant dimensions of layer operand 'layer_op'.
◆ get_weight_layer_op()
| LayerOperand get_weight_layer_op | ( | self | ) |
Return the W LayerOperand: either the constant operand or one of the input operands if none are constant.
Here is the call graph for this function:
Member Data Documentation
◆ constant_operands
| constant_operands |
◆ dimension_relations
| dimension_relations |
◆ equation
| equation |
◆ input_operand_source
| input_operand_source |
◆ input_operands
| input_operands |
◆ layer_dim_sizes
| layer_dim_sizes |
◆ layer_dims
| layer_dims |
◆ layer_operands
| layer_operands |
◆ loop_relevancy_info
| loop_relevancy_info |
◆ memory_operand_links
| memory_operand_links |
◆ operand_data_reuse
| operand_data_reuse |
◆ operand_precision
| operand_precision |
◆ operand_size_bit
| operand_size_bit |
◆ output_operand
| output_operand |
◆ padding
| padding |
◆ pr_decoupled_relevancy_info
| pr_decoupled_relevancy_info |
◆ pr_layer_dim_sizes
| pr_layer_dim_sizes |
◆ pr_scaling_factors
| pr_scaling_factors |
◆ spatial_mapping
| spatial_mapping |
◆ spatial_mapping_hint
| spatial_mapping_hint |
◆ temporal_ordering
| temporal_ordering |
◆ total_mac_count
| total_mac_count |
◆ type
| type |
The documentation for this class was generated from the following file:
- /home/runner/work/zigzag/zigzag/zigzag/workload/layer_node.py
