Outputs¶
Every entry point returns a MappingEstimate and writes a set of files under its output directory, one group_<index>/ folder per fused group. This page covers both.
The result¶
A MappingEstimate holds cycles, the fused groups' estimates plus the reconfiguration the hardware declares, the per-group group_cycles, and the solved context. Read the rest off the context with ctx.get(...):
| Key | What it is |
|---|---|
group_latencies | Per-fusion-group latency breakdown. |
roofline | The accelerator's roofline (a compute roof per class of compute core, a bandwidth ceiling per memory level) and each solved group on it: its operations per cycle, its intensity and attainable rate per level, what bounds it, and a diagnosis of what holds it down. Groups with the same operators, shapes, placement and cost are one point. |
allocation | The Allocation - the problem it solves (the steady-state workload, the candidate placements and routes, the iteration spaces), the solved mapping and iteration spaces, and its solution (placements, routes, latencies, solve statistics and metrics, reports). |
workload | The parsed computation graph. |
accelerator | The parsed hardware model. |
estimate = evaluate_mapping(...)
print(estimate.cycles)
ctx = estimate.context
allocation = ctx.get("allocation")
print(allocation.solution.latency.total)
Files written to disk¶
- Once per run, in the output folder: a picture of the accelerator as Stream reads it (
hardware_graph.svg): each core with the memory each of its top-level instances is a view of and the operands it holds there, each memory with its capacity, views, banks, measured bandwidth and ports (their width, the operands and directions they serve, the cores reaching them), and each link and bus between the memories.python -m stream.visualization.hardware_graph <hardware.yaml> <out.svg>draws one without solving. - Per fused group, in its

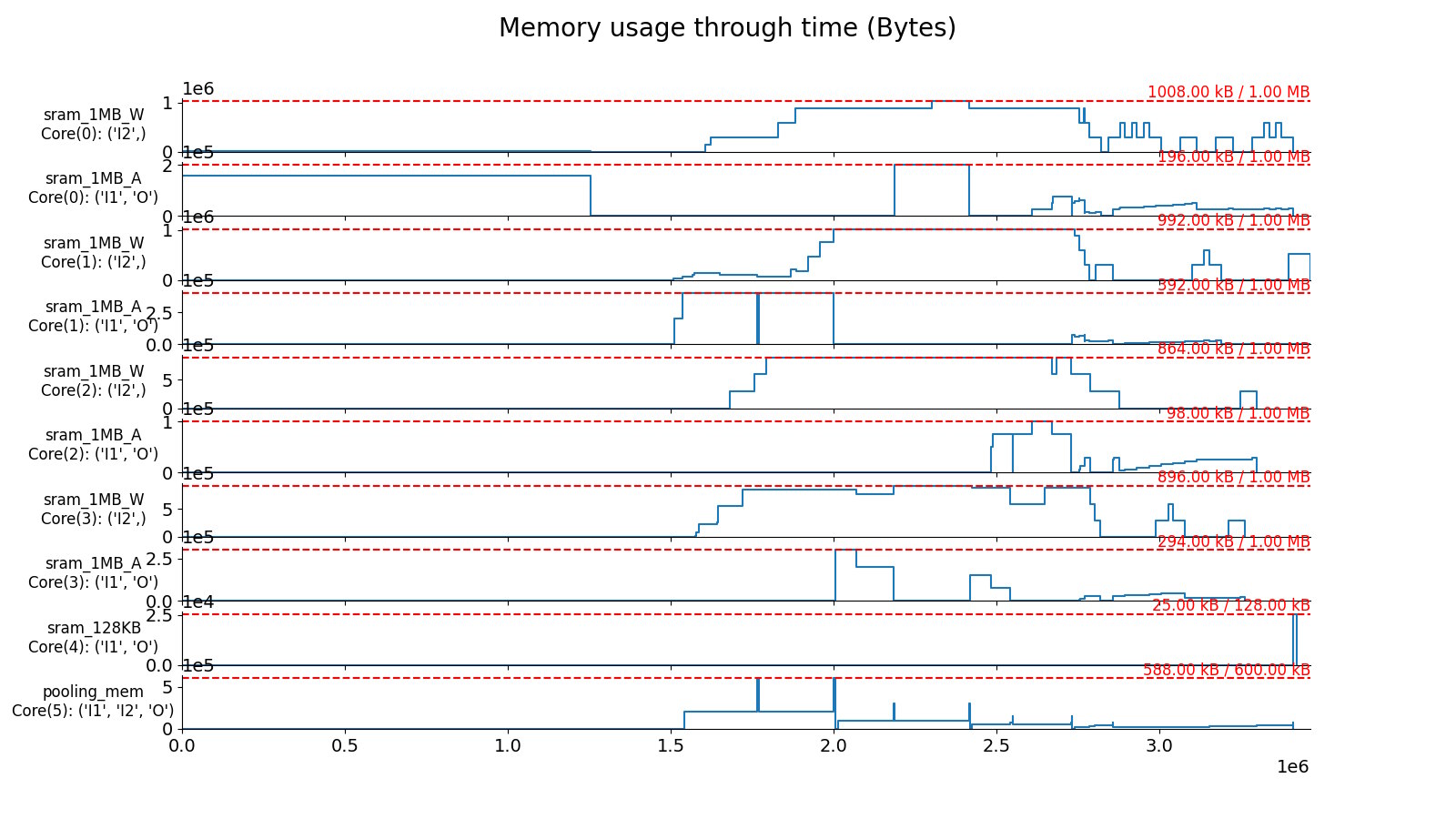

group_<index>/folder: a picture of its tiled workload (tiled_workload.svg), the cost of each node on each core (core_cost_lut.yaml, with itscore_cost_lut.picklecache) and its allocation artifacts; under a tile search, those of the candidate it chose.
SolveOptions(artifacts=False) writes none of these pictures (nor the ONNX parser's workload_graph.svg), and none of the allocation artifacts below.
Allocation artifacts¶
Each allocation solve writes into group_<index>/allocation/:
reports/- the solver's metrics (optimization_metrics.yaml) and, for Gurobi, its progress (optimization_trace.yaml), and where each slot's latency goes (slot_latency_breakdown.yaml).traces/- the allocation as Perfetto JSON traces (steady_state_trace.jsonandsteady_state_trace_compact.json); open them at https://ui.perfetto.dev to inspect each core's timeline and the inter-core transfers.figures/- the solver's progress for Gurobi (optimization_progress.png) and a picture of the solved steady-state workload (steady_state_workload_final.svg).
A sweep that only needs the estimates turns these off, and the pictures with them, with SolveOptions(artifacts=False). A solve that has no solution writes its model for diagnosis instead, whatever artifacts says: Gurobi's irreducible infeasible subsystem as allocation/model.ilp, OR-Tools' whole model as allocation/model.mps.
YAML reference¶
Every key of every YAML file a solve writes, one table per file. A nested key is a dotted path, an item of a list is [], and a key that names something of the solve (a memory, a metadata entry) is in angle brackets. A test solves a small mapping and checks that these are exactly the keys the files hold. The mapping.yaml the generic mapping generator writes is a mapping in the input format, described in Mapping.
core_cost_lut.yaml¶
The cost of each computation node on each core it may run on, next to the core_cost_lut.pickle cache it summarises.
| Key | Meaning | Unit |
|---|---|---|
nodes | the computation nodes the cost LUT holds | |
nodes[].node | the node's name | |
nodes[].cores | the cores the node has a cost on | |
nodes[].cores[].core_id | the core's id | |
nodes[].cores[].core_type | the core's namespaced type, such as aie2.compute | |
nodes[].cores[].latency_cycles | the node's latency on the core, memory stalls included | cycles |
nodes[].cores[].ideal_cycles | the latency at full use of the core's MAC units | cycles |
nodes[].cores[].ideal_temporal_cycles | the latency without memory stalls, under the spatial unrolling the mapping gives the core | cycles |
nodes[].cores[].energy_pj | the node's energy on the core; 0 where the backend estimates none | pJ |
nodes[].cores[].metadata | what the core-cost backend records about the estimate | |
nodes[].cores[].metadata.backend | the backend that estimated it: zigzag, ideal-cycle (ZigZag could not cost the pair) or aie | |
nodes[].cores[].metadata.<key> | a further fact the backend records; aie records computed_fraction (the share of the core's steps that compute anything), and family (the kernel family whose rate priced it) or measured_symbol (the kernel whose measured call did) |
allocation/reports/optimization_metrics.yaml¶
The outcome of the allocation solve, on every backend, and the size of its model, which only Gurobi reports; a value the backend does not report is null.
| Key | Meaning | Unit |
|---|---|---|
status | how the solve ended, such as OPTIMAL or TIME_LIMIT | |
backend | the solver backend, such as GUROBI or ORTOOLS_GSCIP | |
solver | the solver behind it, such as gurobi or gscip | |
search | how much the solver searched | |
search.nodes_explored | branch-and-bound nodes explored | count |
search.simplex_iterations | simplex iterations | count |
solution | what the solver found | |
solution.objective_value | the objective of the best solution; for Stream's lexicographic objective, its highest level, the latency | objective |
solution.mip_gap | the relative gap between that objective and the best bound; null with Gurobi, whose multi-objective solve defines none per level | ratio |
effort | what the solve cost | |
effort.runtime_s | the solver's runtime over every level of the objective | s |
model | the size of the model | |
model.variables | its variables | |
model.variables.total | all variables | count |
model.variables.integer | integer variables, binaries included | count |
model.variables.binary | binary variables | count |
model.constraints | its constraints | |
model.constraints.linear | linear constraints | count |
model.constraints.general | general constraints (min, max, indicator, ...) | count |
model.nonzeros | nonzero coefficients of the constraint matrix | count |
allocation/reports/optimization_trace.yaml¶
Every point a Gurobi solve's progress callback reported, in time order; other backends write no trace. A key a point's callback does not report is null.
| Key | Meaning | Unit |
|---|---|---|
trace | the points, in time order | |
trace[].time_s | the solver's runtime at the point | s |
trace[].event | the callback that reported it: PRESOLVE (presolve progress), MIP (search progress) or MIPSOL (a new incumbent) | |
trace[].incumbent_objective | the objective of the best solution so far, null before the first; a lexicographic solve optimizes its levels in turn, so the values restart at each level | objective |
trace[].objective_bound | the best bound so far, null before the first | objective |
trace[].mip_gap | the relative gap between the two, null while either is | ratio |
trace[].nodes_explored | branch-and-bound nodes explored so far | count |
trace[].nodes_left | branch-and-bound nodes still open (MIP) | count |
trace[].simplex_iterations | simplex iterations so far (MIP) | count |
trace[].cuts_applied | cutting planes applied so far (MIP) | count |
trace[].work_units | Gurobi's deterministic work measure so far | work units |
trace[].rows_removed | constraints presolve removed so far (PRESOLVE) | count |
trace[].columns_removed | variables presolve removed so far (PRESOLVE) | count |
trace[].bound_changes | variable bounds presolve changed so far (PRESOLVE) | count |
trace[].coefficient_changes | coefficients presolve changed so far (PRESOLVE) | count |
allocation/reports/slot_latency_breakdown.yaml¶
Where the latency of one steady-state iteration goes: its totals, each resource's slack, each tensor's reuse, and what sets each slot's latency.
| Key | Meaning | Unit |
|---|---|---|
totals | the latency of the schedule | |
totals.iteration_latency_cycles | one iteration, the sum of its slot latencies | cycles |
totals.overlap_cycles | how much of an iteration the next one overlaps | cycles |
totals.initiation_interval_cycles | the time between the starts of two iterations, the iteration latency less the overlap | cycles |
totals.total_latency_cycles | the latency of every iteration together, fill included | cycles |
totals.fill_cycles | what the run adds to its overlapped iterations: loading single-buffered windows and the first tiles' warm-up before them, the drain and the epilogue after them, and the wait for absent nodes | cycles |
totals.absent_wait_cycles | of the fill, the wait for computation nodes absent from a fused loop that a neighbour varies on | cycles |
totals.epilogue_cycles | of the fill, the calls and firings that run once, after the last iteration and drain | cycles |
totals.shared_busy_cycles | per memory with a measured bandwidth, the time it spends on one iteration's transfers | |
totals.shared_busy_cycles.<memory> | that time for the memory of this name; it bounds the initiation interval from below | cycles |
resource_slack | per core and link, least first, its idle time within one iteration; the overlap is at most the least of them | |
resource_slack[].resource | the core or link | |
resource_slack[].kind | core or link | |
resource_slack[].slack_cycles | its idle time | cycles |
tensor_reuse | per tensor, largest first, the reuse the solve chose | |
tensor_reuse[].tensor | the tensor's name | |
tensor_reuse[].size_bits | its size | bits |
tensor_reuse[].reuse_factor | the iterations one fetch serves, absent loops included; 1 is fetched every iteration | iterations |
tensor_reuse[].reuse_stop_level | the loop level its reuse stops at | |
tensor_reuse[].on_chip_tiles | the tiles it takes on chip at that level | count |
tensor_reuse[].loop_nest_out_to_in | its loop nest, outermost first | |
slots | the slots of one iteration, in order | |
slots[].slot | the slot's index | |
slots[].slot_latency_cycles | its latency, that of the slowest node or transfer in it | cycles |
slots[].compute_contributors | the computation nodes in the slot | |
slots[].compute_contributors[].node | the node's name | |
slots[].compute_contributors[].cost_lut_core_count | the cores the cost LUT prices it on | count |
slots[].compute_contributors[].lut_latency_cycles | its latency on the slowest of them | cycles |
slots[].compute_contributors[].active_fraction | the share of the iterations it is not idle on a loop it is absent from | ratio |
slots[].compute_contributors[].active_latency_cycles | its LUT latency times its active fraction | cycles |
slots[].transfer_contributors | the transfers in the slot, on the routes the solve chose | |
slots[].transfer_contributors[].transfer | the transfer's name | |
slots[].transfer_contributors[].tensor_bits | the size of the tensor it moves, only the indices its readers read | bits |
slots[].transfer_contributors[].min_link_bandwidth_bits_per_cycle | the bandwidth of the narrowest link on its route | bits/cycle |
slots[].transfer_contributors[].path_cycles | the time its route takes to move the tensor | cycles |
slots[].transfer_contributors[].active_latency_cycles | the route time times its active fraction | cycles |
slots[].transfer_contributors[].reuse_factor | the iterations one firing of its most often firing copy serves, absent loops included | iterations |
slots[].transfer_contributors[].latency_contribution_cycles | what it adds to the slot's latency | cycles |
Typed IR (for tools and agents)¶
For structured, JSON-serializable output, convert the context's objects into the typed IR models. These are the same models the MCP server returns:
from stream.ir import WorkloadIR, AcceleratorIR, AllocationIR
workload_ir = WorkloadIR.from_internal(ctx.get("workload"))
accelerator_ir = AcceleratorIR.from_internal(ctx.get("accelerator"))
allocation_ir = AllocationIR.from_internal(ctx.get("allocation"))
allocation_data = allocation_ir.model_dump() # JSON-compatible dict
AllocationIR exposes persona views - .algorithmic_view(), .hardware_view(), .compiler_view() - each shaping the same result for a different consumer. The performance view surfaces bottleneck (compute- vs transfer-bound) cycles and per-node utilization, and, under layouts, every transfer on its chosen route: the tile it moves, the memories it reads and writes, the axis orders of both copies (source_order, target_order, outermost first), whether it converts the layout, its contiguous bytes per run on each side, and per side the strides, the steps the DMA takes along each axis, its size and stride loops and the memory banks it lands in (see Data layout). Its energy gives the run's energy in pJ, per iteration split into the nodes and the transfers, and over every iteration, and under components where one iteration's energy is spent: each node's MAC array and memory levels on the cores it runs on, and each transfer's memory ports and links. steady_state is the solved steady state per core: its iterations and axes, where each tensor is placed and how it is buffered, and per tiled node its cores, tiles and runs (the times it runs), or for a transfer its route, the window and moved tile of each target, its halos and the demand each source serves at each target per firing (sent, by kind: moved, in_place, filled or partial) and the bits each link carries per firing (link_bits). copy_moved_bits and copy_reuse_factors give each copy's bits and reuse; where copies slide along fused loops, a firing's bits are the average over the firings. Partial sums are held at the accumulator precision and exchanged between cores at their reduction format; a sum kept below the top memory reaches it once (see Hardware). fill includes the epilogue: what a copy kept along a loop in which its producer still computes, and the calls after it, add after the last iteration. roofline is the group's point on the accelerator's roofline. Under memory_ports, bits_per_iteration, real_cycle and utilization are what the solver paces per iteration, and once_per_run_bits what moves once per run: a resource moves iterations x bits_per_iteration + once_per_run_bits. edge_placements and edge_tensors give where each input and output of the group is held, off chip or placed on chip, and its whole tensor, and offchip_holdings the bits of each of those tensors each off-chip memory holds, the group's off-chip footprint, keyed by the tensor names edge_tensors gives so that a tensor several groups hold counts once (see Placement of inputs and outputs). See Using Stream with an AI agent for details.
