Hardware

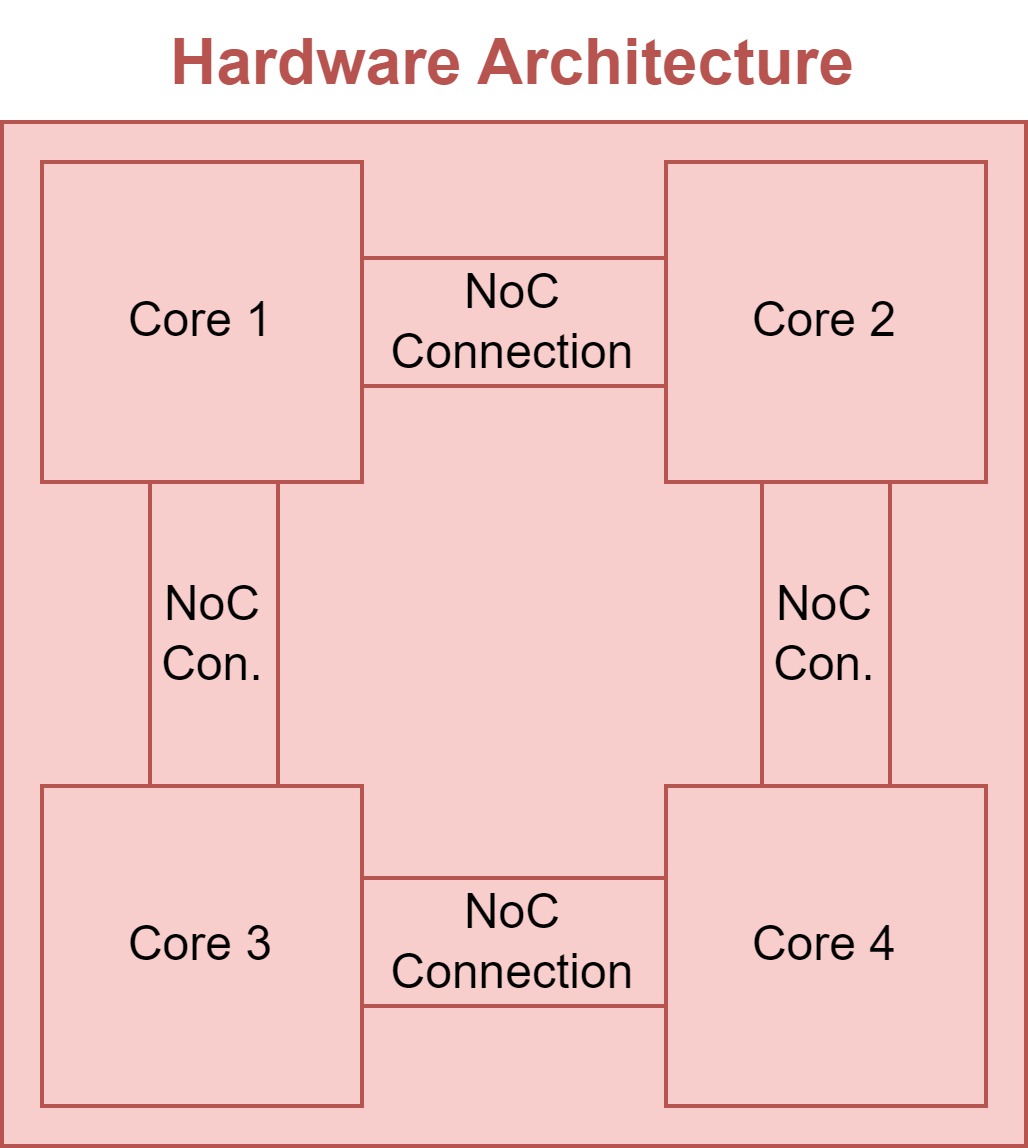

A hardware target in Stream is a system of heterogeneous dataflow cores that compute out of memories, with the memories joined by links and buses. You describe it with YAML in two layers:

  1. An accelerator file - names the system, lists its cores and memories, says which memory each core computes out of, and connects the memories.
  2. One core file per core type - describes a single core's compute array and memory hierarchy.

Accelerator files live in stream/inputs/examples/hardware/; the core files they reference live in stream/inputs/examples/hardware/cores/. Several cores in an accelerator may point at the same core file (e.g. four identical compute cores).

The format is validated by stream/parser/accelerator_validator.py and built by stream/parser/accelerator_factory.py - those files are the authoritative schema if anything below is ambiguous.


Accelerator file

name: tpu_like_quad_core

cores:
  0: ./cores/tpu_like.yaml   # compute A
  1: ./cores/tpu_like.yaml   # compute B
  2: ./cores/tpu_like.yaml   # compute C
  3: ./cores/tpu_like.yaml   # compute D
  4: ./cores/pooling.yaml    # pooling engine
  5: ./cores/simd.yaml       # SIMD unit

core_coordinates:
  0: [0, 0]
  1: [1, 0]
  2: [1, 1]
  3: [0, 1]
  4: [2, 0]
  5: [2, 1]

unit_energy_cost: 0     # default energy for the connections

memories:
  tpu_like_0:
    offchip: false
    views: [0.sram_2MB]           # <core id>.<top-level memory instance in that core's file>
    ports:                        # ports core 0's file declares on sram_2MB
      r_port_1: {from: r_port_1, cores: [0]}
      w_port_1: {from: w_port_1, cores: [0]}
  # … tpu_like_1 to tpu_like_3, pooling and simd alike …
  offchip:
    offchip: true
    views: []                     # no core computes out of DRAM
    capacity_bits: 10000000000
    ports:
      rw_port_1: {bandwidth: 64, serves: {any: [read, write]}, read_energy: 15.625, write_energy: 15.625}

connections:
  # 2-D mesh among the four compute cores' memories
  - type: link
    ends:                         # each memory it joins, with the ports the link passes there
      tpu_like_0: [r_port_1, w_port_1]
      tpu_like_1: [r_port_1, w_port_1]
    bandwidth: 32
  # … more links …

  # shared bus to off-chip memory
  - type: bus
    ends:
      tpu_like_0: [r_port_1, w_port_1]
      # … tpu_like_1 to tpu_like_3, pooling and simd alike …
      offchip: [rw_port_1]
    bandwidth: 128
Field Required Meaning
name yes A label for the system.
cores yes Map of integer core id → core file. Paths may be relative (./cores/foo.yaml); a bare filename is resolved against <accelerator_dir>/cores/ then <accelerator_dir>/.
memories yes Map of memory name → its description, see Memories.
connections yes List of links and buses between memories, see Connections.
core_coordinates no Map of core id → [col, row]. Used for placement-aware models; required for the AIE namespace, optional otherwise.
bandwidth no Measured bandwidth models, keyed by memory name or by <memory>.<port>, see Measured bandwidth.
unit_energy_cost no Default energy per transferred word for every connection, unless overridden per-connection. Defaults to 0.
kernel_library no Path, relative to this file, to the kernel library the target's AIE kernels are described by.
reconfiguration no What a dispatch costs beyond its designs' prices, read by the cores' namespace; for aie2, cycles_per_group per design (its first fetch and last write) and, where a dispatch holds several designs, cycles_per_core per compute core of each to configure it.

Memories

Data lives in memories. A core computes out of its top-level memory instances (per operand, the highest level in its core file), and each such instance is a view of exactly one memory. Several cores may view one memory, as the MXU, VPU and VMEM cores of tpu_v7_ironwood.yaml do; data between them moves in place, without a route. Lower levels of a core's hierarchy are internal to the core.

Field Required Meaning
offchip yes Whether it is an off-chip memory, where the workload's inputs and outputs live unless the mapping places them on chip (see Mapping). Every other memory has a route from one, and no core views it.
views yes The core instances that see this memory, as <core id>.<instance>, e.g. [0.l1, 1.tcdm]. Empty for a memory no core computes out of, such as DRAM.
capacity_bits only without views Its capacity in bits. A memory with views takes the size its views declare.
ports yes Its ports by name, see Memory ports.
dma no The DMA behind its channels ports: buffer_descriptors and iterations per descriptor. Given exactly when a port has channels. Only the aie2 namespace bounds DMA channels: there the off-chip memory has dma and every one of its ports has channels. The AIE code generator chains re-reads within these limits.

An accelerator may have several off-chip memories, such as an HBM per chiplet, each with its own capacity, ports and bandwidth (and measured bandwidth, keyed by its name or port). Accelerator.offchip_memories lists them in declaration order. Every on-chip memory must be reachable from at least one; a core reading another core's off-chip memory crosses the on-chip links between them. The mapping's placement of each workload input and output says which of them hold it and how it is split (see Mapping); the order of its bytes inside a memory is its layout (see Data layout). With several, the latency needs the overlap family's off-chip contention, so a selection without it is refused, and the AIE code generator, whose runtime sequence reaches one, refuses the hardware. stream/inputs/testing/hardware/ has two such systems: tpu_like_ring_hbm (four slices on a ring, an HBM stack each) and tpu_v7_ironwood_hbm_per_chiplet (tpu_v7_ironwood with an HBM per chiplet).

The allocation places tensors in memories; a memory's capacity bounds what all its cores hold in it together. A node reads input k from the memory its core's I<k> instance views, and writes to the one its O instance views.

Memory ports

ports lists every physical port of a memory. A port either comes from the viewing cores' files or is declared by the memory itself:

ports:
  # Port `rw_port_1` that the listed cores declare on their view; cores in one entry share the port.
  rw_a: {from: rw_port_1, cores: [0, 1]}
  rw_b: {from: rw_port_1, cores: [2]}
  # Declared here: width in bits per cycle, directions served per operand (`input<k>`, `output` or `any`),
  # energies in pJ per bit.
  rw_port_1: {bandwidth: 64, serves: {any: [read, write]}, read_energy: 15.625, write_energy: 15.625}
  # A DMA port: each of its `channels` carries one transfer at a time.
  mm2s: {bandwidth: 128, channels: 2, serves: {any: [read]}, read_energy: 0, write_energy: 0}

Every port a viewing core declares must belong to exactly one entry. A transfer passes, of the ports its connection lists for the memory, the one serving its operand in its direction; list at each end a port serving reads and one serving writes (unless the memory has a measured bandwidth), and only one such port per operand and direction.

The memory_ports constraint family, in the default set, uses these rates. Its interval option (default true) fits each port's bits per iteration in its rate times the initiation interval; burst (default true) fits each step's bits in its rate times that step's latency.

Measured bandwidth

bandwidth gives a measured model, in bits per cycle: ceiling for reads and writes together, contiguous one way, strided.read / strided.write per contiguous span in bytes, and adjacent.read / adjacent.write per span where neighbouring channels move adjacent runs of the same rows (a transfer a route moves over several links gets at most the adjacent rate of the shortest run one link moves), or, where nothing is measured, burst, the bytes moved per access, of which a shorter contiguous run uses only its share (see Data layout). Its key is either:

  • a memory (e.g. dram): the model bounds every transfer into or out of it, in place of its ports' widths, so its views need not list their ports;
  • a port <memory>.<port> (e.g. hbm.rw_port_1): the model replaces that port's width.

Each entry in connections is one connection between memories:

Field Required Meaning
type no link (point-to-point between exactly two memories) or bus (shared medium between two or more memories). Defaults to link.
ends yes Map of each connected memory → the ports of that memory the connection passes.
bandwidth yes Peak bandwidth of the connection (bits per cycle), > 0.
unit_energy_cost no Per-word energy for this connection; inherits the accelerator-level default if omitted.

Connections are how the MILP allocator routes tensors between memories. A typical accelerator has fast point-to-point links on-chip and one wider bus to the off-chip memory.

A transfer's route serves each target from the nearest memory holding the data it reads, then joins each source's targets in one tree (a Steiner tree, grown from the shortest paths with each link weighted by the time the transfer already keeps it busy, and a link that already carries all the next target reads by nothing), so data shared by several targets crosses each link once. A transfer from the off-chip memory to several targets also has a striped route: the data every target the off-chip memory has a link (not a bus) to reads is cut into a part per such target, each part enters over that target's link and takes the shortest paths on chip to the others. It also has a route entering over the one link that keeps the tree least busy, which sends each bit through the off-chip port once; the allocator picks between the routes. The off-chip memory has no switch, so it sends a copy for each link that carries the data, and each copy is charged in its port's or measured bandwidth's time, in energy and in the memory-access counts; in the tree, a link leaving it is weighted at least by the cycles its port is then busy. A memory passing data on reads from its ports what it holds of that data itself, unless the namespace of its cores switches the data onto the next link unread. Partial sums, of a computation split over a dimension it reduces, are added up on their way to their target; one headed off-chip is completed in the on-chip memories next to it, a slice each, as a reduce-scatter. The core owning a memory in which partial sums meet adds them (read, add, write): those reads and writes are charged at the memory's ports, the additions' own energy and time are not. A route never passes through the off-chip memory, and a bus carries what each memory sends over it separately. Each link is charged, in time and in energy, the share of the transfer's data crossing it.


Core file

Every core declares a type of the form <namespace>.<kind>:

  • namespace - zigzag (a full dataflow core modelled with ZigZag's cost model) or aie2 (an AMD AIE tile).
  • kind - compute or memory (a core that holds data but runs no nodes, such as an AIE memory tile). Off-chip memory is not a core: the accelerator's memories declares it.

A bare kind (e.g. type: compute) is accepted and defaults to the zigzag namespace.

ZigZag cores

A ZigZag core has a memory hierarchy and an operational (MAC) array:

name: tpu_like
type: zigzag.compute

memories:
  rf_2B:                       # a register file serving outputs
    size: 16                   # capacity in bits
    r_cost: 0.021              # read energy (pJ)
    w_cost: 0.021              # write energy (pJ)
    area: 0
    latency: 1
    operands: [O]              # which operands this memory holds
    ports:
      - name: r_port_1
        type: read             # read | write | read_write
        bandwidth_min: 16      # bits / cycle
        bandwidth_max: 16
        allocation:
          - O, tl              # (operand, port-direction tag)
      - name: w_port_1
        type: write
        bandwidth_min: 16
        bandwidth_max: 16
        allocation:
          - O, fh
    served_dimensions: [D2]    # array dimensions this memory feeds

  sram_2MB:
    size: 16777216
    r_cost: 416.16
    w_cost: 378.4
    latency: 1
    operands: [I1, I2, O]      # weights, activations, outputs
    ports:
      - name: r_port_1
        type: read
        bandwidth_min: 64
        bandwidth_max: 2048
        allocation: [I1, tl, I2, tl, O, tl, O, th]
      - name: w_port_1
        type: write
        bandwidth_min: 64
        bandwidth_max: 2048
        allocation: [I1, fh, I2, fh, O, fh, O, fl]
    served_dimensions: [D1, D2]

operational_array:
  unit_energy: 0.04            # pJ per MAC
  unit_area: 1
  dimensions: [D1, D2]         # spatial (unrolled) dimensions of the array
  sizes: [32, 32]              # 32 × 32 systolic array

Operands. Stream uses three algorithmic operands: I1 (weights / first input), I2 (activations / second input), and O (output). A memory's operands field lists which of these it stores.

Ports and allocation. Each memory exposes ports. An allocation entry pairs an operand with a port-direction tag - fh (write the high / final value), fl (write the low / partial value), tl (read low / from lower level), th (read high / to higher level). This is how Stream knows which port carries which data movement when it builds the cost model.

served_dimensions. The operational-array dimensions (D1, D2, …) that this memory feeds. An empty list means the memory is innermost (feeds a single MAC lane).

operational_array. The spatial compute fabric: dimensions names the unrolled axes, sizes gives their extent, and unit_energy / unit_area are the per-MAC cost.

Restricting a core to certain operators

A compute core can be limited to specific operator types with an operator_types list. For example a pooling engine accepts only pooling ops:

name: pooling
type: zigzag.compute
# … memories, operational_array …
operator_types: [MaxPool, AveragePool, GlobalAveragePool]

If operator_types is omitted, the core accepts any operator. The auto-mapper (see Mapping) uses this field to decide which nodes a core is eligible for - e.g. SiLU/Mul go to the SIMD core, pooling to the pooling core, and Conv/Gemm to the general compute cores.

Operand precision

A compute core can declare the element types it computes in:

operand_precision:
  input: bf16
  accumulator: fp32
  partial_sum: bf16

The accumulator sets the precision of a matmul's or convolution's running sum while the core accumulates it; the result is written out at its output tensor's type. A core without an accumulator keeps running sums at the output's type. partial_sum sets the type in which cores send each other the partial sums of a reduction that a split over cores (inter_core_tiling) cuts: by default the output's type, and the widest where the cores declare different ones. input names the multiplier format; it is recorded in the core's hardware cost report and does not change latency or energy. The known types are int4, int8, uint8, int16, int24, bf16, fp16, int32 and fp32.

An output buffer (a memory level below a core's top level that holds only outputs, such as an output register file) keeps a running sum across the fused loops of a dimension the node reduces over, where each instance holds outputs of its own and one instance fits the sums at the accumulator precision. The sum then reaches the top memory once, complete, with no read-back per call.

Memory banks

A memory level can declare how it is banked, for the layout report to place each tile's bytes in banks: in a ZigZag core under memories.<level>, in an AIE tile under memory. The views of one memory must agree on its banks.

memories:
  sram:
    # size, ports, ...
    banks:
      count: 8     # banks
      width: 16    # bytes per bank word
      stripe: 512  # words a bank holds before the next one does; 1 (the default) interleaves words

Byte address a sits in bank a // width // stripe % count. An AIE-ML tile's eight banks are each one contiguous 8 KB range (stripe: 512); a memory that interleaves words across its banks takes the default. The allocation does not price bank conflicts: the banks only describe where data lands.

Systolic arrays

An operational array whose operands move from one unit to the next, one unit per cycle, rather than being broadcast, lists the dimensions they move along:

operational_array:
  dimensions: [D1, D2]
  sizes: [256, 256]
  systolic_dimensions: [D1, D2]

ZigZag then adds the cycles the last results take to leave the array, one per unit in use along each such dimension (510 on a full 256 x 256 array). A run's tiles follow each other through the array, so Stream charges this drain once per run, in its fill, rather than on every tile. A node that reads another's results waits for them to drain, while one that does not streams into its array behind it, so the fill adds the drains along the run's longest chain of dependent nodes: a SwiGLU's gate and up projections drain together, then its down projection. The TPU-like, TPU7x MXU and FuseMax arrays are systolic.

AIE cores

AIE tiles use the aie2 namespace and a lighter schema describing tile-local memory, the tile DMA's channels and the object-FIFO depth, rather than a full ZigZag hierarchy. These are used by the AIE codegen entry points and live under stream/inputs/aie/hardware/.

name: aie_tile
type: aie2.compute
max_object_fifo_depth: 12
memory:
  capacity: 524288     # bits
  bandwidth_min: 512   # bits / cycle
  bandwidth_max: 512
dma:                   # tile DMA channels
  mm2s: 2
  s2mm: 2
  channel_bits: 64

A tile's view is <core id>.memory, with ports mm2s and s2mm. On aie2 each on-chip memory is a view of exactly one tile (the shipped files name it tile_<col>_<row>); a neighbouring tile reads it without a view.

DRAM has no views. Its ports are the shim DMAs, one mm2s/s2mm pair per column (mm2s_c<col>, s2mm_c<col>), each with channels: 2, and each column's link to its memory tile passes that column's pair; a shim port serves one column. DRAM's dma gives the shim DMA's buffer descriptors and iterations (16 and 64 on AIE2).


Converting a hardware file from the core format

Stream used to describe an accelerator as cores joined to cores: offchip_core_id named a core standing in for DRAM, core_connectivity joined cores, and core_memory_sharing and memory_aliases said which cores' memories were one. Such a file no longer parses. The core files stay as they are, except for banks; the accelerator file gains memories and connections. The conversion prompt has an agent convert one file, and scripts/check_hardware_conversion.py checks the result against the Stream that read the old file.

Key by key

Core format Memories format
offchip_core_id: k Core k leaves cores, core_coordinates and every connection; a memory with offchip: true, views: [] takes its place.
ZigZag off-chip core: its top level's size That memory's capacity_bits.
its port p: bandwidth_max, allocation, r_cost, w_cost p: {bandwidth: <bandwidth_max>, serves: ..., read_energy: <r_cost / bandwidth_max>, write_energy: <w_cost / bandwidth_max>}: an access moved bandwidth_max bits. serves lists per operand (I1 is input1, I2 input2, O output) read for th/tl and write for fh/fl; any for all three alike.
aie2.shim off-chip core capacity_bits: <memory.capacity>, dma: {buffer_descriptors, iterations}, ports mm2s and s2mm of channels: <dma.mm2s>, bandwidth: <mm2s x channel_bits>, serves: {any: [read]} ([write] for s2mm), energies 0.
A core's top-level instance i (per operand its highest level; memory on an AIE tile) A memory with views: [<core>.i] and, per port p of i, p: {from: p, cores: [<core>]}; on an AIE tile mm2s and s2mm.
core_memory_sharing: ["a, b, c"] One memory, views: [a.i, b.i, c.i], each port {from: p, cores: [a, b, c]}.
memory_aliases: [[a.x, b.y]] One memory, views: [a.x, b.y].
core_connectivity entry cores: [a, b, ...] connections entry, ends: the memories of those cores, each with the ports a transfer passes there: one per operand and direction, usually all of the memory's. type, bandwidth and unit_energy_cost as they were.
bandwidth key k (a core) The name of k's memory; its views need not list their ports.
bandwidth key k.i.p <memory>.<port name>.
A core file's top-level banks Under the level it describes: memories.<level>.banks, or memory.banks on an AIE tile.
Core kinds offchip, shim Gone: a core is compute or memory.

name, cores (minus the off-chip core), core_coordinates, kernel_library, reconfiguration, technology_node and unit_energy_cost are unchanged. Core ids keep their values; they need not be contiguous.

What the old Stream did with a file

The old Stream did not always build what a file says. A faithful conversion builds what it built; doing what the file says instead is a modelling change, which the checker reports.

Case The old Stream Faithful conversion
Two connections join the same two cores, such as links declared before a bus over all cores Kept one edge per pair of cores, the last declared: the links never carried data (every eyeriss_like_*, tpu_like_quad_core, simba_small and meta_prototype file) Leave such links out
A link at a core of a core_memory_sharing group other than its first Entered and left the group through its first core where that one had links, so the link went unused (fusemax's second link to DRAM) Leave it out; two links between the same memories are two resources
A core in no connection and no sharing group Never built it (whole_array's shim cores 6, 12, 18) Drop it
A core with several top-level instances One memory, sized by the instance holding I1, its links reaching all of them (meta_prototype: activations and weights) One memory per instance; a link joins the I1 one, a bus all; capacity and occupancy now split, which no faithful form avoids
memory_aliases Costing only: each aliased memory kept its capacity and the links between their cores, and all used the first one's ports One memory with its capacity once and no link inside; cores declaring a port differently need a port entry each. No faithful form
An aie2.shim linked to every column One shim's 2 + 2 DMA channels for the whole array One mm2s / s2mm pair on every column's link; a pair per column (mm2s_c<col>) gives each column its own channels
A link between two cores that now view one memory A route between them Leave it out: the data moves in place

What the memories format has no place for: the off-chip core's bandwidth_min, latency, area, served_dimensions, operational_array, name, id and coordinates; a shim's max_object_fifo_depth and memory.bandwidth_min/bandwidth_max. Delete the off-chip core file if no other accelerator uses it.

Checking a conversion

Install the Stream that read the old file next to the current one, for example python -m venv /opt/stream-old && /opt/stream-old/bin/pip install "stream-dse @ git+https://github.com/KULeuven-MICAS/stream@d03bfd10" (or, with the same dependencies, --old-python "env PYTHONPATH=<old checkout> python"), then

python scripts/check_hardware_conversion.py check OLD.yaml NEW.yaml --old-python /opt/stream-old/bin/python

Each file is summarised by its own Stream and the summaries compared. A memory is known by its views (0.vmem+1.vmem), the off-chip one as offchip, and ports and connections by their cores, operands, rates and energies, so names may change. Compared are: per core its type, coordinates and operators; per memory its capacity, ports, measured bandwidth, off-chip DMA and banks; every connection with the ports at each end; and the latency, energy and per-memory occupancy of one solve (the 2-conv test workload unless --workload, --mapping and --cols say otherwise; --no-solve skips it), within --rtol (1 %), the occupancy up to a permutation of equal memories. It prints each difference and a last line with the latency and energy of both, and exits with 1 if anything differs. summarize writes one file's summary and compare compares two, for a summary recorded elsewhere.

The shipped files keep the links the old Stream ignored, give meta_prototype's weights memories of their own and each AIE column its own shim ports; against the old files the checker reports these and nothing else.


Example systems

Nine non-AIE example accelerators ship under stream/inputs/examples/hardware/ and are exercised across both example workloads in the test matrix (see the Workload × Hardware matrix in the README):

eyeriss_like_single_core, eyeriss_like_dual_core, eyeriss_like_quad_core, tpu_like_quad_core, simba_small, simba (a 36-core chiplet mesh), fusemax, meta_prototype_dual_core_simd_offchip, and tpu_v7_ironwood (memories shared by several cores).

AIE example systems (single_core, single column, full array, Strix variant) live under stream/inputs/aie/hardware/.
